Product Introduction

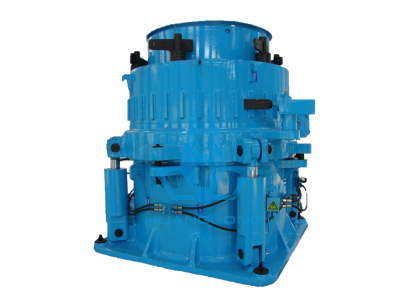

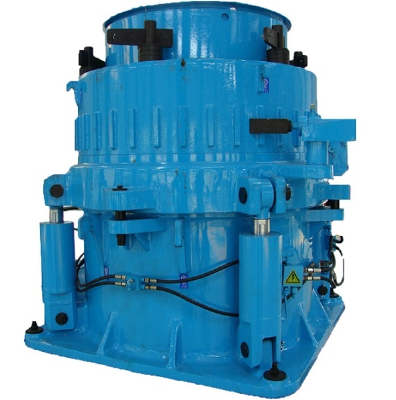

   YZP-Y hydraulic cone crusher is a type of high performance crusher designed by our company on the basis of advanced Germany technology, and combined with Chinese metal nature.  Mainly used for 2 times and 3 times crushing in mining and construction material industry. Because its strong crushing capability and big output, it always used for middle hard materials crushing.

Operating Principle

     When working, the motor drive eccentric sleeve via V-belt, big pulley, driving shaft, small bevel gear and big bevel gear, axis line rotary under this force, thus the crushing wall goes close and apart from the mortar wall so that the materials get attacking, squeezing and breaking between fixed cone and mobile cone. After several time of crushing, required product discharged from the bottom port.

Main Features

    1. High efficiency: fixed main shaft, optimum structure design of Spherical axis, 5%-15% higher than traditional cone crusher.

    2. High output: 35%-60% higher than traditional cone crusher.

    3. Best quality: inter particle breakage can produce crushing effect between particles, needle shape stone is less, while particle size is evener.

    4. More stable: advanced hydraulic technology can provide overload protection and reduce stop time, which realize stable and safe.
